PLATES & GASKETS

Gasket Selection.

Provide the following information to our THS sales team for a quote at Contact THS SERVICE or 905-831-4963.

1.

Manufacturer
2.

Model
3.

Application (Water, Steam, Glycol)
4.

Material

5.

Styles
6.

Quantity
7.

Type
8.

Nameplate Image

Model Finder

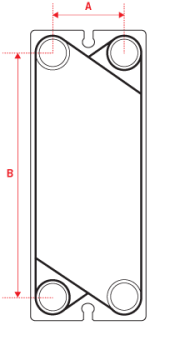

Measure the center to center mm of the port holes horizontal (A) and vertical (B).

Choose Manufacturer for model chart
- Alfa Laval
- Alfa Laval Cont'd
- APV - SPX
- B&W MAN
- BELL&GOSSETT
- CATERPILLAR
- CETETHERM
- CUMMINS
- DEUTZ - MWM
- FUNKE
- GEA-ECOFLEX
- HISAKA
- HRS
- ITT STANDARD
- KAPP & ARSOPI
- MUELLER
- MTU
- PASILAC
- SONDEX
- SCHMIDT BRETTEN
- SWEP
- TRANTER
- VICARB
- VITHERM
- VOLVO-PENTA

ITT Standard Gaskets

ITT Standard Gaskets

Model Frame type	PF8 FM	PF8 FG	PF FGL	PF15 FG	PF15 VLCH	PF15 DWFG
A = mm	60	60	60	135	135	135
B = mm	357	357	357	591	591	591

Model Frame type	PF20 FM - FML	PF20 FG - FGL	PF20 FD	PF21 FM - FML	PF21 FG - FGL	PF21 FD
A = mm	140	140	140	140	140	140
B = mm	640	640	640	640	640	640

Model Frame type	PF25 FM	PF25 FG	PF25 FD	PF30 FG	PF30 BFD
A = mm	225	225	231	234	234
B = mm	719	719	719	703	703

Model Frame type	PF35 FM	PF35 FG	PF35 FD	PF40 FG	PF40 FS	PF41 FM8
A = mm	225	225	231	290	290	298
B = mm	719	719	719	1046	1046	1294

Model Frame type	PF41 FG8	PF41 FD8	PF42 FML	PF42 FM8	PF42 FG8	PF42 FD8
A = mm	298	304	298	298	298	304
B = mm	1294	1294	1294	1294	1294	1294

Model Frame type	PF45 FL	PF45 FG	PF45 FD	PF45 BWGF	PF45 BWFD	PF50 FG
A = mm	350	350	350	350	350	365
B = mm	1315	1315	1315	1315	1315	930

Model Frame type	PF50 FD	PF55 FG	PF55 WGF	PF55 SFG	PF55 DWFG	PF60 BGF
A = mm	365	365	365	365	365	365
B = mm	930	1450	1450	1450	1450	1450

Model Frame type	PF61 FM	PF61 FG	PF61 FS	PF65 BFL	PF65 BFG	PF65 BFD
A = mm	353	365	353	430	430	430
B = mm	1478	1478	1478	1550	1550	1550

Model Frame type	PF65 BFL	PF65 BFG	PF65 BFD	PF66 FG	PF66 FD	PF66 FS
A = mm	430	430	430	439	439	439
B = mm	1550	1550	1550	1939	1939	1939

Model Frame type	PF70 HBM	PF70 HA	PF71 FM	PF71 FG	PF71 FD	PF75 HA
A = mm	540	540	596	596	596	765

Material

Selecting the wrong gasket can be a timely and costly mistake. Let our experienced THS sales team recommend the most durable and cost effective gasket material for your application by providing us with the pressure, temperature and process liquid details.

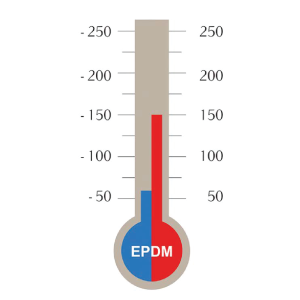

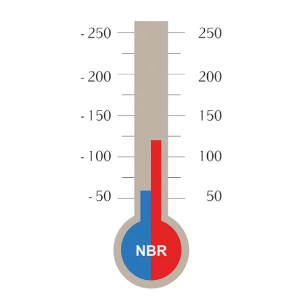

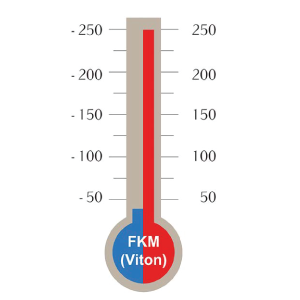

Buna (NBR/Nitrile), EPDM or Viton materials are the most common plate & frame heat exchanger gaskets depending on the operating application.

Food Grade

Standard Grade

Aggressive Chemical Compounds

Changes in Gaskets:

Time – Relaxes
Temperature – Deteriorates
Oxidizing Agents – Hardens
Swelling – Chemical Absorption

Gaskets Material Depends on:

Fluids Used
Temperature and Pressure

Standard Gasket Styles

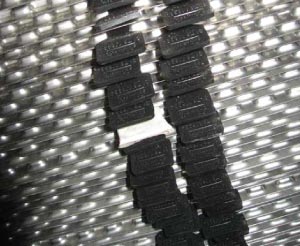

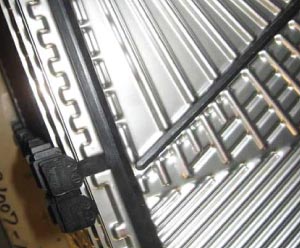

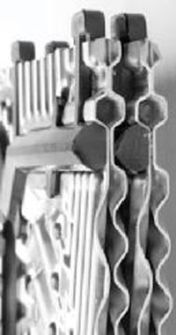

Clip - will usually have rubber tabs that are visible from the outside of the heat exchanger

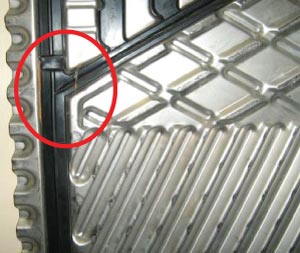

Glue – no tabs and in most cases the brown glue is visible under the gasket; typically used in high pressure or high temperature applications

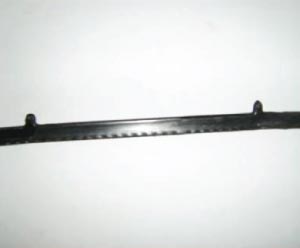

Ball - used in HVAC or FDA applications to allow for easy removal in the field

WHEN SHOULD A PLATE & FRAME HEAT EXCHANGER BE SERVICED?

As a heat exchanger becomes fouled with dirt, debris or scale, often the modulating valve provides additional hot or cold liquid to help compensate for the loss of efficiency of the heat exchanger.

Over time the control valve will continue to open fully. Unfortunately, on the hottest or coldest days, even with the valve fully open the heat exchanger cannot meet the thermal transfer requirements and the situation becomes critical.

Monitoring just the operating temperature provides a false sense of security. Recording the difference in the outlet and inlet pressures provides a more accurate result of the amount of fouling.

Fouling equal to the thickness of a piece of paper represents a 20% loss of thermal efficiency. In addition, the energy cost for pumps increases since the pump must work harder to overcome the increased pressure resistance through the PHE

T.H. Industrial Solutions Inc. (THS) has been servicing industrial plate and frame heat exchangers as with shell and tube heat exchangers. Professionally solving process problems across Canada since 2009. THS head office is located in Pickering, Ontario with a 6,000 square foot service center in Hamilton, Ontario.

Today there are fewer qualified people in this industry that know the products and understand the applications. Utilizing hands on experience and knowledge that has been gained by our THS sales and service technicians for over the past 30 years, we will take the time to understand what you require and strive to provide a prompt, educated and accurate response at a competitive price.

Our Heat Exchanger Cleaning Services, along with heat exchanger gasket replacement systems, and knowledge of heat exchanger gasket materials make THS your Industrial Heat Exchanger Service Solution
